Understanding Apache Kafka Architecture and Principles

Kafka is described as a “distributed commit log” – a distributed system that stores an ordered stream of events, is replayable, and is highly fault-tolerant.

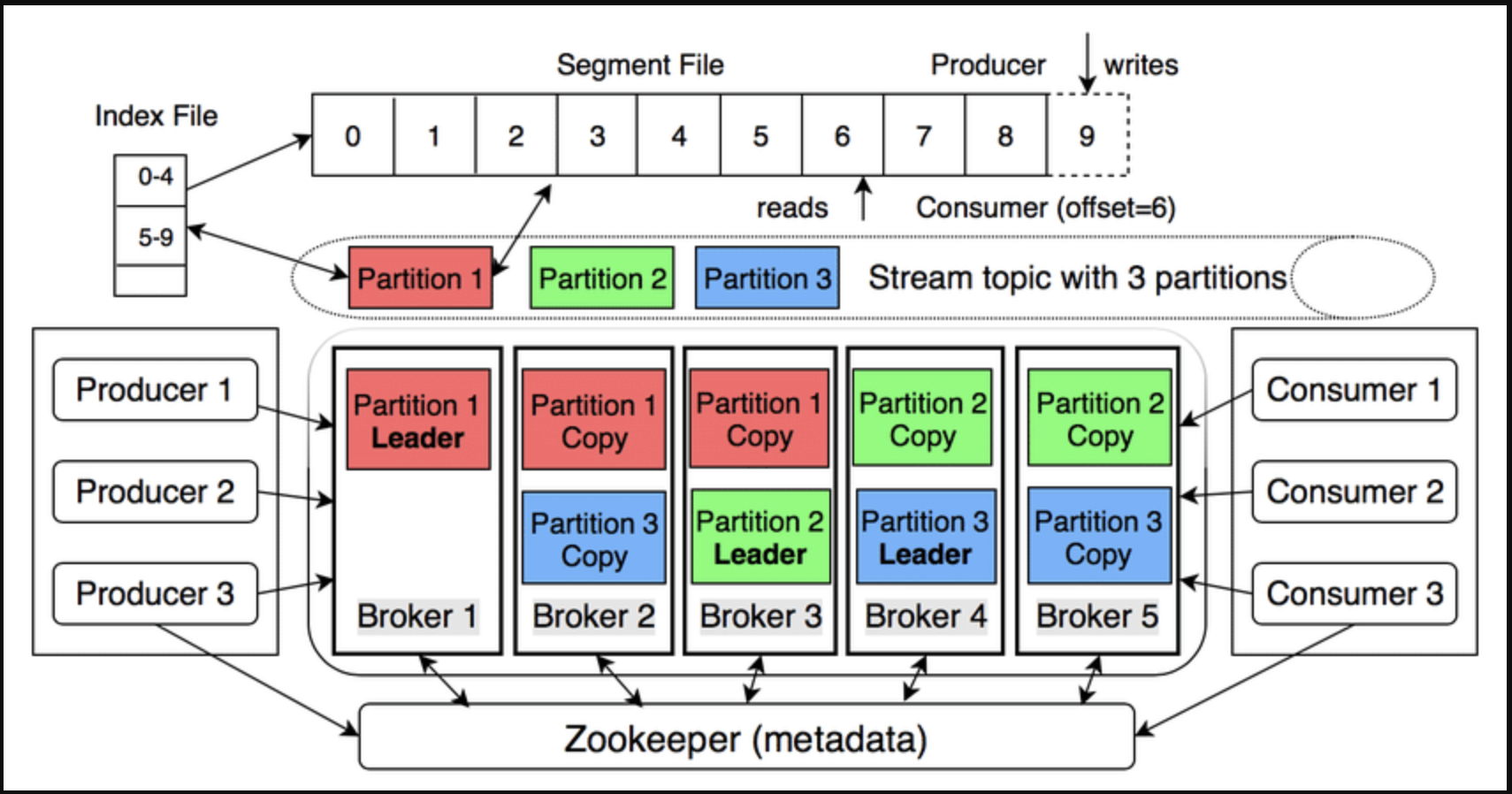

1. Overview of the architecture

Components	Main functions
Broker	Kafka server stores and serves data.
Topic	Logical data stream; divided into Partitions.
Partition	An append-only log, with increasing offset – ensures order in partition.
Producer	Sends message (key-value) to topic; key determines partition (hash).
Consumer	Reads message by offset; no data is deleted.
Consumer Group	Consumer group divides partitions equally to scale horizontally.
Replication	Each partition has 1 leader and n followers; leader receives write, follower replicates to withstand errors.
Controller	Broker is elected as controller (replacing ZooKeeper in new version) to coordinate leader/follower.

2. Working principle

a) Write data

• Producer sends record → Broker leader of partition → append to log.

• Message is flushed to disk according to configuration (default 7 days or when full).

• Replication is synchronous to follower (ack=all to ensure zero-loss).

b) Read data

• Consumer poll() continuously and commit offset (automatically or manually).

• Multiple consumer groups read the same topic independently – “replay” feature.

c) Guaranteed ordering

• Only in the same partition; if needed globally, use key or 1 partition.

3. Quick comparison with RabbitMQ

Score	Kafka	RabbitMQ
Model	Partitioned log	Queue
Ordering	In partition	In queue (single consumer)
Retention	Policy-based (days, GB)	Ack-based (delete when ack)
Scale	Horizontal (add broker)	Vertical (add queue)
Replay	Yes	No (acked, lost)

4. Frequently asked questions about Apache Kafka

What is the role of ZooKeeper in the Kafka system?

Zookeeper, as its name suggests (zookeeper), is the butler who manages the entire Kafka system. Here are some of the main roles of Zookeeper:

• Store cluster-wide metadata
  • List of live brokers
  • List of topics, partitions, replica assignments
  • ISR (In-Sync Replicas) of each partition
  • ACLs & quotas
  • Clients (producer/consumer) read this metadata through brokers; brokers get it from Zookeeper.
• Coordinate leader election
  • Each partition has 1 leader and n followers.
  • When the broker dies or the ISR changes, the broker controller (elected by Zookeeper) triggers. leader election → selects a new leader for the corresponding partition.
• Cluster configuration & change
  • When admin creates topic, changes replication-factor, ACL… changes are recorded in Zookeeper → controller updates and disseminates to broker.
• Do nothing
  • Do not save real data messages.
  • Do not participate in producer/consumer sending/receiving records.
• Zookeeper = “metadata brain & coordinator” of Kafka (in pre-KRaft version); it ensures cluster knows “who is alive, who is the leader, which topic is where” and automatically rebalances when there is a problem.

What is Kafka Raft?

Kafka Raft – abbreviated as KRaft – is a consensus protocol developed by Apache Kafka to completely remove the dependency on ZooKeeper when managing cluster metadata. It was deployed from Kafka 3.3.1

KRaft turns Kafka into a “self-contained distributed streaming platform” – both storing data and managing metadata itself using Raft internally.

ZooKeeper vs Kafka Raft comparison?

Criteria	ZooKeeper mode (pre-Kafka 2.8)	KRaft mode (Kafka ≥ 2.8, default from 4.0)
Roles	Metadata & leader-election system outside of Kafka	Metadata & controller integrated into Kafka via Raft consensus
Number of systems required	2 (Kafka + ZooKeeper cluster) → 5–7 JVMs	1 (Kafka-only) → only 1 JVM needed for dev/test
Configuration	zookeeper.connect, ACL ZooKeeper, SSL ZooKeeper…	controller.quorum.voters, controller.listener.names – no more ZK configs
Metadata storage	ZK znodes	Internal topic __cluster_metadata (event-sourcing, replayable)
Limited number of partitions	~200 k (due to ZK bottlenecks)	>200 k (target millions)
Partition creation/change time	Linear, slow	Constant, fast (10×) – 42 s vs 600 s when reassigning 10 k partitions
Fail-over controller	10–30 s (depends on ZK session timeout)	Almost instantaneous, ~1 s
Security	Must maintain 2 models: Kafka SASL/SSL + ZK ACL	Single, synchronous model
Start dev/test	Need to start ZK first	Run kafka-server-start.sh in one command
Dynamic configuration	Supports dynamic advertised.listeners, leader.imbalance.*	Restart required to change (static configuration)
Migration path	N/A	Required if upgrading to Kafka 4.0 – using kafka-storage tool & KIP-833

In Kafka I have 3 topics, each topic I have 3 partitions, how many partitions will Kafka create?

Kafka will create a total of 9 partitions:

3 topics × 3 partitions/topic = 9 partitions.

Is a Kafka partition a queue?

No. A Kafka partition is not a traditional queue (FIFO); it is an append-only log (commit log):

• Data is written sequentially to the end of the log file (incrementing offset).

• Consumers only read sequentially by offset; no data is deleted after reading.

• No pop(), poll(), peek() like queues; messages remain there until retention policy deletion (time/bytes).

How do we know which offset the Consumer has consumed?

Consumers “remember” offsets by committing themselves (or letting Kafka commit for them) and saving offsets to the special topic __consumer_offsets:

• After batch processing is complete, call:

• consumer.commitSync() – blocks until broker ACKs.

• consumer.commitAsync() – does not block, has a callback.

• Or enable.auto.commit=true (default), Kafka automatically commits every auto.commit.interval.ms

• Broker stores 3-tuple: (group.id, topic, partition) → offset in partition of __consumer_offsets

• When consumer restarts:

• Send OffsetFetch request to get last committed offset.

• Continue polling from that offset onwards (or follow auto.offset.reset policy if no offset yet).

• Consumer does not need to store offset on its side; offset is always centrally managed by Kafka.

Is a kafka broker a server?

Yes — a Kafka broker is a physical or virtual server, running a JVM process (kafka-server-start).

However, it is possible to:

• 1 server running 1 broker (exactly 1:1).

• 1 server running multiple brokers if you want to test multi-broker on your personal machine (change port, log.dirs).

In actual production, 1 broker = 1 server to simplify operations and avoid I/O, port, resource conflicts.

What is the structure of log file storage in Kafka?

<log.dirs>/ # broker configuration directory
├── topicA-0/ # partition 0 of topicA
│ ├── 00000000000000000000.log # message segment
│ ├── 0000000000000000000.index
│ ├── 0000000000000000000.timeindex
│ ├── leader-epoch-checkpoint
│ └── ...
├── topicA-1/ # partition 1 of topicA
├── topicA-2/ # partition 2 of topicA
├── topicB-0/ # partition 0 of topicB
...

• Real data is in .log file (binary).
• .index & .timeindex files help to search quickly by offset and timestamp (memory-mapped).
